Continuous Ground Light
Product Code: 248
Description

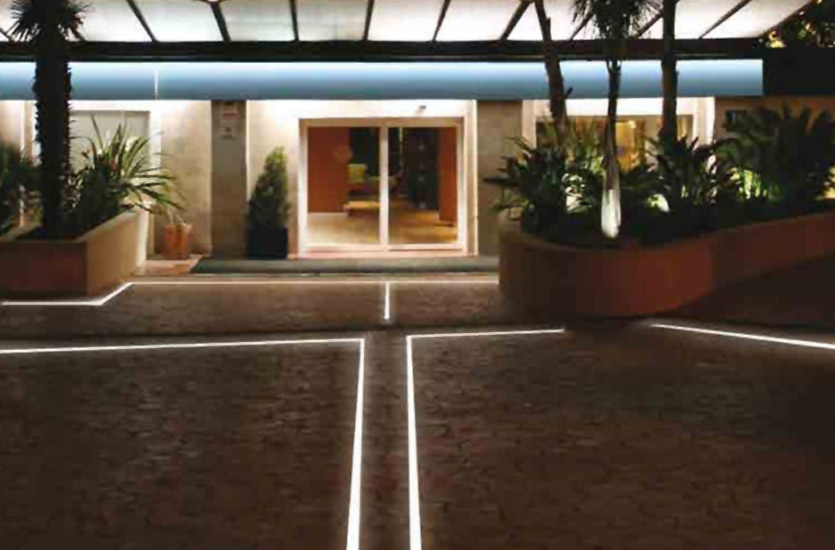

Ground recessed trimless linear uplighter available in single sections or can combine to form continuous lengths. Opal wide angled lens (35mm width) produces a glow of illumination along its length. Available in ground or wall version.
Construction
Construction: Aluminium housing, glass lens. IP68. IK10.
Installation Frame: Stainless steel frame to be laid before path/road manufacture. Frame joiner required for connecting 1 or more Trace luminaires together at each junction (4 maximum at 90 degree angles). Trace supplied with 0.5m in/out cables as standard (Connector and/or end cap required). Drainage Area of 200mm underneath Luminaire required.
Lens: White frosted tempered glass lens, 110° beam. Max static pressure load – 500 Kg.
Manufactured: EU.
Product Compliance: EN 60598; CE.
Warning: Groundlights can be a glare, slip, trip or burn hazard. Vandalism or accidental breakage can result in electrical, glass or trip hazard. Locate to avoid or minimise these hazards.
Options
Various Lengths or Combined to formed Continuous Linear GroundLight.
Electrical
LED: 3.5w (250mm long section), 7w (500mm long section) or 14w (1000mm long section). 4K as standard, 3K on request. Sections can be combined to form continuous lengths.
RGB colour changing version available on request.
Driver: Remote 24 VDC driver required. Additional RGB controller required for colour changing version.
Downloads
Product Leaflet: Download Product Leaflet
